RC LIGHT KIT

Hmm.. I don't know what to say 🤷

Ok. This full kit is working on arduino platform. To many hours with my friend / Big Thank you to him / we got it all together and on every try we kept updating the code. Again and again till is not finalised like on the video. LIGHT KIT VIDEO

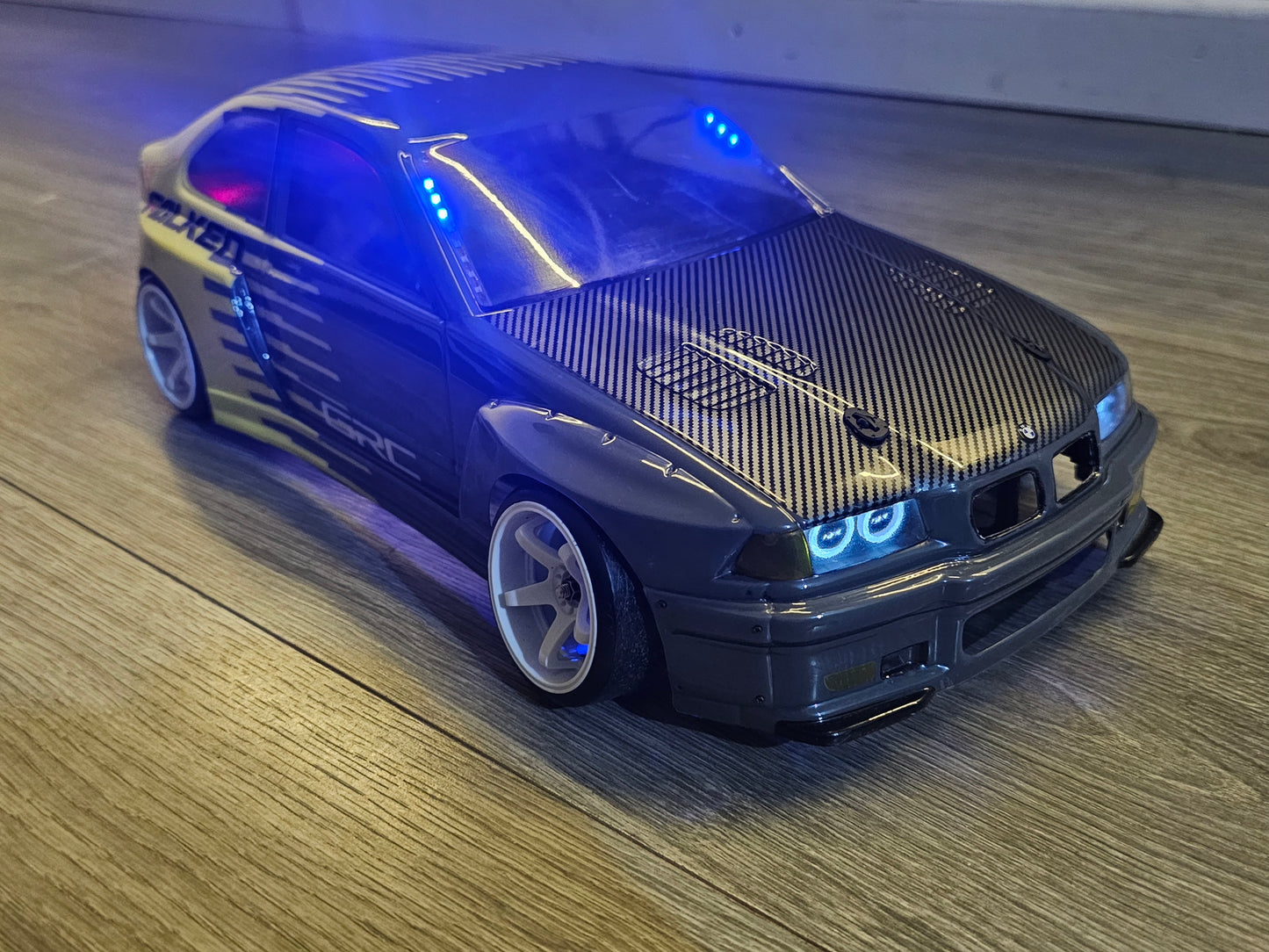

Light have calibration button for your calibration pwm signal automatically (same like esc calibration ) with light status. After this calibration is all done. You dont need doing anything else. Formula drift 2023 style works perfectly and have very quick response on your finger. Front and taillight is permanently on when you driving. After a few seconds on neutral light it dims down just 50% / saving your battery /. Brake lights, backfire lights working on throttle.

This light kit will be available in three versions.

1. Just Lights with backfire led two side L/R [ front and rear led light diode 5mm front 3mm rear] exhaust is compatible with any GRC exhaust
2. Just Formula drift light with backfire led two side L/R  /2xfront windscreen bar and one 4 pc. rgb led strip
3. Full set. All in one . Lights kits with Formula drift and parking hazard light

Size :

Module is just 4cmx2cmx1cm big. Is small and can tu be installed on yours bodyshell.

Sanwa / Futaba compatible.

No need separately power cable. All is powered on chanel two / need Y cable .. not includet /

CALIBRATION :

To calibrate the endpoints of the throttle channel, press and hold the endpoint button until the status LED turns on:

1. When the status LED blinks one time, set the lower endpoint then press the endpoint button.
2. When the status LED blinks twice, set the higher endpoint then press the button again.
3. When the status LED blinks three times, set the neutral point then press the button.
